27mm Dia Counter Rotating Twin Screw Extruder Split Casting Barrel Structure
Contact Person : Grace Pu
Phone Number : 86-18180485887
WhatsApp : +8618180485887
| Minimum Order Quantity : | 1 | Price : | USD 270000-1500000 |
|---|---|---|---|
| Packaging Details : | Wooden base plate, damp proof plastic lining | Delivery Time : | 90 days after payment of deposit |
| Payment Terms : | T/T | Supply Ability : | 100 sets per year |
| Place of Origin: | SiChuan, China | Brand Name: | ADVS |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | YSE50 |
|
Detail Information |
|||
| Screw Design: | Double Screw | Application: | Rubber, Chemical Engineering,food And Pharmacy |
|---|---|---|---|
| Plastic Processed: | Rubber | Warranty: | 1 Years |
| Usage: | Devolatilization,latex Coagulation,dewatering,mixing And Reactive Extrusion | ||
| Highlight: | co rotating twin screw extruder,twin screw compounding extruder |
||
Product Description

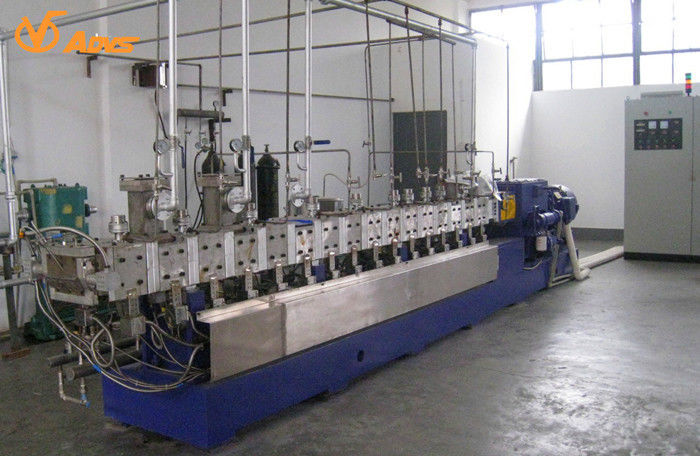

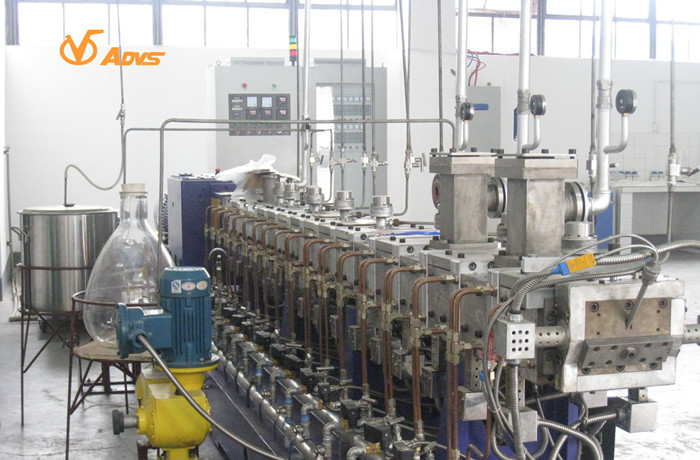

Counter rotating twin screw polymer devolatilization extruder for reactive extrusion
Our YSE series Counter-rotating Twin Screw Extruders are successfully used in processes such as devolatilization,latex coagulation,dewatering,mixing and reactive extrusion in the field of chemical engineering,food and pharmacy.
This machine is mainly used for high viscosity material reaction extrusion.
Technical data
| Type | YSE50/80-400 |
| Screw Diameter | 50mm/65mm (Intermeshing & Non intermeshing for your choice) |
| L/D | 80:1 |
| Screw Speed | 500rpm |
| Motor Power | 55KW |
| Air vent | 3 |
| Liquid injecting vent | 10 |
| Gas feeding vent | 3 |
| Barrel | Openable, can be open completely |
Advantages of our counter rotating devolatilization extruder
High Torque: which used in high viscosity material processing, meet high output production requirements
Long use-life:The gearbox can reach 72000 h (10 years) or more.
Long L/D:There can be a number of vents and hoppers,which is applicable to the high devolatilization process,also it can apply in the reactive extrusion to achieve more different materials mixing reaction.
Custom-made design:the two screw shaft Intermeshing or Non intermeshing structure for your choice.
